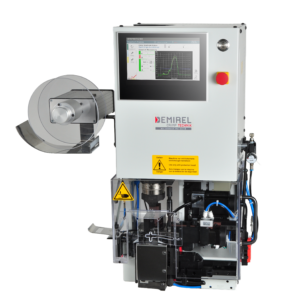

601 Splice Crimpmatic
Crimping press with frequency-controlled drive. Special version for splice connections
Technical data
|
Press force: |
20 kN |
|
Rated power: |
0,75 kW |
|
Power supply: |
230 V, 1~/N/PE, 50/60 HZ |
|
Control voltage: |
24 V = |
|
Cross-section range: |
bis 6,00 mm² |
|
Stroke: |
41 mm |
|
Shut height: |
135,78 mm |
|
Cycle time, programmable: |
0,3 s |
|
Sound pressure level: |
< 70 dB (A) |
|
Dimensions (W x D x H): |
365 x 780 x 420 |
|
Weight: |
ca. 125 kg |
Standard equipment
- Foot switch
- Machine light
- Safety guard splice connector
- Spool support arm
- Tool clamping plate
- PLC
- 7″ TFT color display
- 230 V – socket
Software
- OPC-UA communication (Option OPC Hardware und Software)
- Headroom analysis (Option advanced machine software)
- Split-Cycle function (Option advanced machine software)
- Setup menu with creep function
- Programmable user levels with password protection
- Fault message in plain text form
- Large number of counter functions
- User language in German and English
Options
- Integrated crimp force monitoring (Komax or OES)
- DCC system 601 (only in conjunction with crimp force monitoring)
- Paper winder and mounting kit
- Contact strip cutter
- Standard maintenance unit
- Pneumatic kit PKE
- Adjustable insertion mask
- Quick tool clamping system
- OPC hardware
- OPC software Advanced machine software (Headroom and Split-Cycle)
