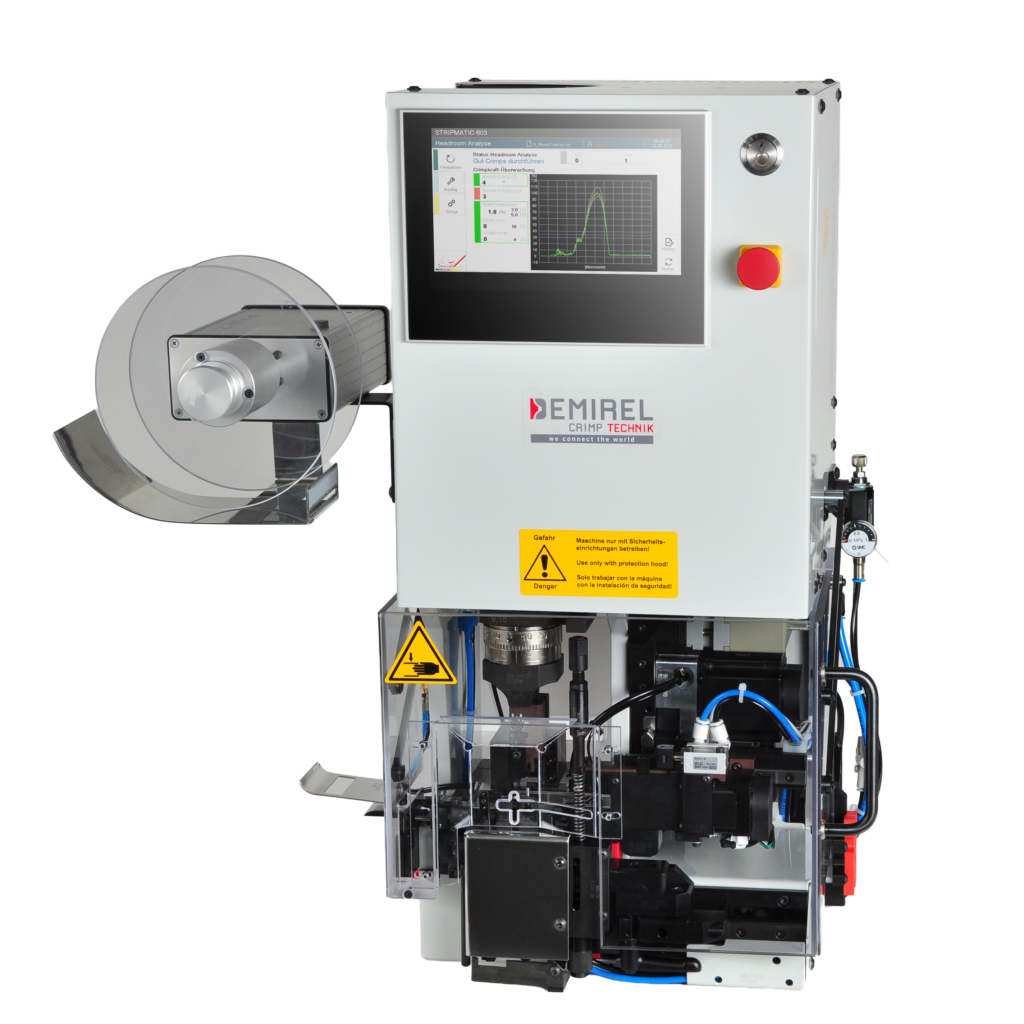

966 Stripmatic
Programmable stripper-crimper with numerically controlled stripping unit for small cross-sections.

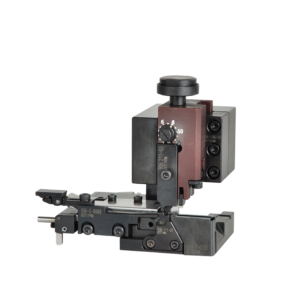

Programmable stripper-crimper with numerically controlled stripping unit for small cross-sections. For applicators with shut-height of 68,4 mm.
Important!
For applicators with shut-height of 68,4 mm!
Technische Daten
| compression force: | 3 kN |
| motor output: | 0,35 kW |
| operating voltage: | 230 V, 1~/N/PE, 50/60 HZ |
| control voltage: | 24 V = |
| air-pressure: | 6 – 8 bar |
| wire cross-section: | 0,02 – 0,50mm² |
| stripping length: | 0,50 – 4,50 mm |
| dismantle length: | 20,00 mm depending on terminal (other upon request) |
| idle stroke: | 22 mm |
| lower dead centre: | 68,4 mm |
| cycle time: | 1,5 s |
| noise level: | <70 db(A) |
| dimensions (WxHxD): | 280 x 220 x 560 |
| weight: | 50 kg |
Standard equipment
- Moveable safeguard
- Spool arm
- Applicator fixture plate
- Programmable logic controller
- 7″ TFT color Display
- 230 V – safe plug socket
- DCC-System (defective crimp cutting system)
- Terminal Strip Chopper
- corrective cutting
- user languages German, English
- crimping process is actuated by outer jacket or the individual strands.
- waste management of stripping with waste tube
- integrated WAY-BACK function
Software
- Programmable correction cutting function
- Saving settings for various tools on an SD card
- OPC-UA communication implementable (Option OPC hardware and software)
- Headroom analysis (Option advanced machine software)
- Split-Cycle function (Option advanced machine software)
- Setup menu with creep function
- Programmable user levels with password protection
- Fault message in plain text form
- Large number of counter functions
- User language in German and English
