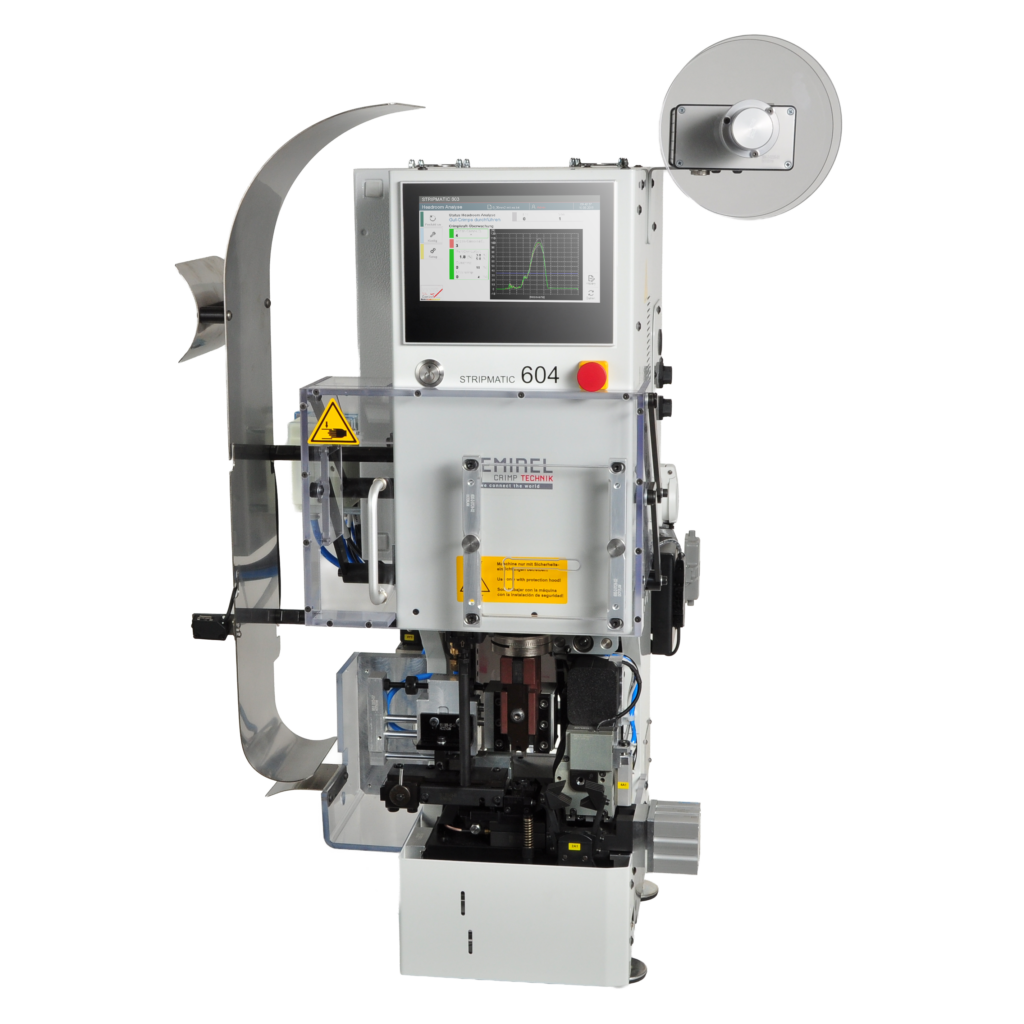

604 Stripmatic
Programmable stripper-crimper with rotating blades specialized for processing koaxial cables
Technical Data:
|
Press force: |
20 kN |
|
Rated power: |
0,75 kW |
|
Power supply: |
230 V, 1~/N/PE, 50/60 HZ |
|
Control voltage: |
24 VDC |
|
Cross-section range: |
0,08* – 4,00 mm² |
|
Stripping length: |
2,0 – 15,0 mm |
|
Dismantle length: |
25 mm Demirel Applicator 35 mm other Applicator |
|
Correction cut: |
0 – 6 mm |
|
Stroke: |
41 mm |
|
Shut height: |
135,78 mm |
|
Cycle time, programmable: |
Depending on settings |
|
Sound pressure level: |
< 70 dB (A) |
|
Dimensions (W x D x H): |
330 x 440 x 760 |
|
Weight: |
ca. 145 kg |
|
Abmessungen (B x T x H): |
350 x 440 x 760 mm |
|
Gewicht: |
ca. 150 kg |
*Depending on cable
Standard equipment
- Adjustable insertion mask
- Machine light
- Swiveling protective guard
- Spool support arm
- Tool clamping plate
- Programmable memory control
- 7″ TFT color display
- Pneumatic cable clamping
- Pressure control valve with pressure gauge for adjusting gripper pressure
- 230 V – protective contact socket
- Stripping unit
- Stripping residue wiper between stripping knife and trigger
- Integrated Defective Crimp Cutting System (Only in conjunction with optional crimp force monitoring)
- Extraction of stripping residues with collecting bag
Software
- Programmable correction cutting function
- Saving settings for various tools on an SD card
- OPC-UA communication implementable (Option OPC hardware and software)
- Headroom analysis (Option advanced machine software)
- Split-Cycle function (Option advanced machine software)
- Setup menu with creep function
- Programmable user levels with password protection
- Fault message in plain text form
- Large number of counter functions
- User language in German and English
Further operating modes
- free programmable step strip cuts
- adjustable direction of rotation,
- adjustable speed for blade moving
- different modes for stripping, partial strip, crimping only and stripping with crimping
- Stripping can also be adjusted without blade turning
